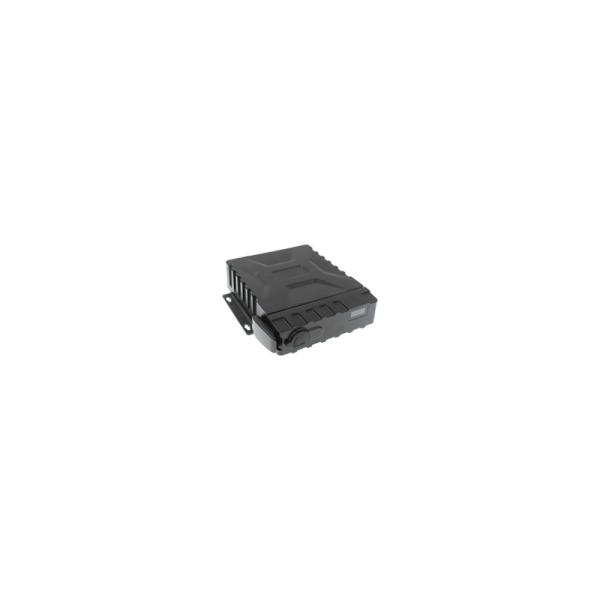

IP67 4 Channel SSD DVR
P/N: JH003
$ 293.00
Specifications:
- Video:
A:Supports 4 channels CIF/HD1/D1/960H camera Video input
B:Supports 4 channels 720P AHD camera Video input
C:Supports 4 channels 1080P AHD camera Video input
D:Supports 2-CH 720P AHD + 2-CH 960H analog mixing Video input
E:Supports 1-CH 720P/1080P IPC + 4-CH 720P AHD/960H/D1/CIF Video input
F:Supports 1-CH 720P/1080P IPC + 4-CH 1080P AHD Video input
Note: (4×15 fps) 4-CH 1080P AHD + 1-CH 720P/1080P IPC Video input (4×15 fps)
4-CH 1080P AHD camera Video input
- Audio: 4 Channels/1 Channel/Synchronized A/V recording
- Communication Ports:
- 1 Port for PTZ control or Data Device usage
- 1 Port for communication or data usage
- 1 Port of RJ45, For connection to an IP camera with maximum of 1080P
- 1 Ports for USB 2.0, download video files & upgrade firmware
- ireless Communication:
- 3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional Internal module
- 4G (TDD-LTE / FDD-LTE) optional module to match local cellular carrier
- Internal Wi-Fi 802.11ac optional
- Voltage Range: +8～+36V
- Video Input Resistance: 75Ω
- Video Output Voltage: 2Vp-p
- I / O Port: 5V
- Operational Temperature: -25℃～80℃
